Customization
We offer precision-crafted custom solid wire pins with a commitment to quality assurance. Offering complete customization for all our products, our extensive selection includes various configurations, shapes, sizes, and features, suitable for a wide array of applications.

Specifications
Bead Electronics is your go-to for precise and high-quality solid wire pins. These custom connector pins are available in a range of versatile configurations, backed by our exceptional engineering expertise and dedicated customer support. Customers can choose from different base metals and plating options, ensuring a perfect match for specific needs.

Modify Configuration

Item #
Shape

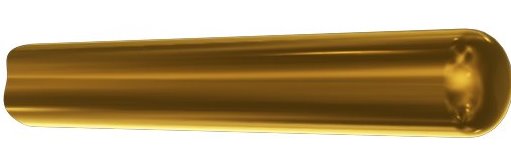

Round Wire Contact Pins

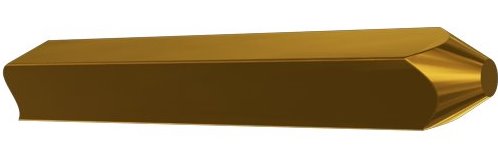

Square Wire Contact Pins
End Type
  • Cut and Tumble
  • Round Type 1 - Spherical
  • Round Type 2 - Bullet
  • Straight
Straight or Bend
  • Bend
  • Straight
Material
  • C10200 Copper
  • C11000 Copper
  • C17200 Beryllium Copper
  • C26000 Brass
  • C51000 Phosphor Bronze
  • C72500 Copper Nickel Tin
Finish
  • Gold over Nickel
  • Nickel
  • Tin Lead over Nickel
  • Tin over Nickel
Do You Need a Retention Feature?
  • No
  • Yes

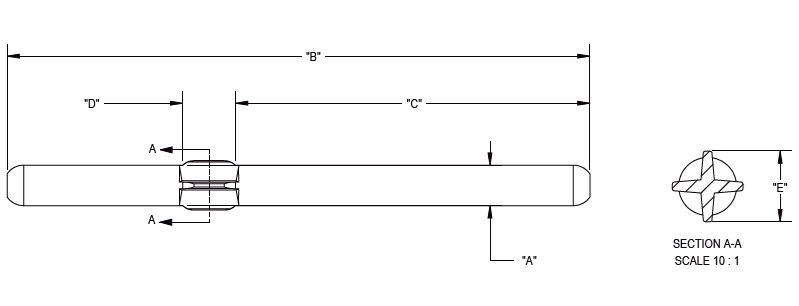

Dimensional Drawing
"A" Pin Diameter/Square (in)

Available Range: 0.015 to 0.125 By 0.001
"B" Overall Pin Length (in)

Available Range: 0.100 to 3.000 By 0.001
